9.70 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Specifications |  View |
| Brand Name | Enersol Biopower® |
| Driven Type | Electric |
| Click to view more | |
Product Details
Automatic Grade
Automatic
Application
Industrial
Warranty
1year
Country of Origin
India
Specifications
| Brand Name | Enersol Biopower® |
| Model Name | ECO-Green Biochar10 |
| Fuel | 100% biomass |
| Feeding system | Semi automatic |
| Acceptable moisture in biomass | less than1 5% |
| Biomass acceptable size | 6-10mm |
| Power required | 2.5-3HP |
| SCREW CONVEYOR WITH HOPPER | |
| Capacity | 10kg/hr. |
| Conveyor flow rate | 10kg/hr. |
| Material | Mild Steel |
| PRE-HEATER | |
| Capacity | 10kg/hr. |
| Operating temperature | 100°C - 200°C100°C - 200°C100°C - 200°C |
| Material | Mild Steel |
| AIR LOCKING SCREW | |
| Specifications | Low pressure reaction vessels with 10kg/hr. capacity |
| Material | Mild Steel |
| MAIN REACTOR | |
| Material | Stainless Steel |
| Capacity | 10kg/hr. |
| GAS COOLING & CLEANING SYSTEM WITH CONDENSOR | |
| Water tank capacity | 100ltrs. |
| Material | Mild Steel |
| Condenser material | Stainless Steel |
| Gas cleaning scrubber material | Stainless Steel |
| SREW CONVEYOR WITH COOLING SYSTEM | |
| Capacity | 10kg/hr. (shell & tube heat exchanger) |
| Material | Mild Steel |
| Temperature | 350°C -50°C350°C -50°C |
| Gas burner material | Mild Steel |
| Burner type | Single burner |
| CONTROL PANEL AND THERMOCOUPLES | |
| Basic control panel with temperature control provision | yes |
| K type thermocouples | 2nos. |
| J type thermocouples | 2nos. |
| Dimension | L15 x W8 x H5 (feet) |
| Weight | 800-100kg approx. |

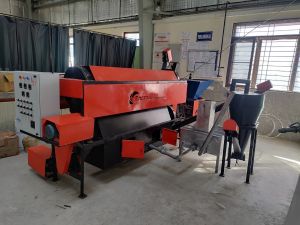

Looking for "ECO-Green 10 Biochar Plant" ?
