12.00 Lac / Piece
| Business Type | Manufacturer, Exporter, Supplier, Trader |
| Click Here to View Catalogue |  View |
| Brand Name | Enersol Biopower® |
| Color | Black And Red |
| Click to view more | |
Product Details
Country of Origin
India
Capacity
5KW (7.5KVA)
Fuel
100% Biomass
Auxiliary Power Required
2.5hp
Biomass Consumption per Hour
7.5kg/hr.
Gas flow (NM3/hr.)
15NM³/hr.
Thermal Output At 100%
18,750Kcal/hr
Thermal Output At 80%
15,000 Kcal/hr.
Specifications
| Brand Name | Enersol Biopower® |
| Capacity | 5KW (7.5KVA) |
| Model Name | ESB-R BIO-05 |
| Model No. | ESB-R05 |
| Fuel | 100% Biomass |
| Type of Gasifier | Downdraft Gasifier |
| Man power required | 1no. |
| Auxiliary power required | 2.5hp |
| Biomass consumption per hour | 7.5kg/hr. |
| Gas flow (NM3/hr.) | 15NM³/hr. |
| Thermal output at 100% | 18,750Kcal/hr |
| Thermal output at 80% | 15,000 Kcal/hr. |
| Gasification temperature | 1050- 1100°C |
| Average gas calorific value | ≥1000 |
| Biomass feeding system | Manual |
| Ash removal system | Manual |
| Ash content | 5-7% |
| start up | Auto ignition |
| Acceptable moisture in biomass | less than 20% |
| Material of construction | Mild Steel, Ceremic Brick & Stainless Steel |
| Water tank capacity | 250-300ltrs. |
| Producer gas genset capacity | 5KW (7.5KVA) |
| Starter | 12V starter |
| Power factor | 0.8 P.F. |
| Governor | Mechanical / Electronic governor |
| Phase | Single / Three phase |
| Amps per phase | 25amps Single phase / 7amps/phase (three phase) |
| Frequency | 50Hz |
| Voltage | 220V / 415V |
| Engine Ignition system | Spark Ignition |
| Stroke | Four stroke engine |
| Bore x Stroke | |
| Rated speed | 1500RPM |
| No of cylinder | single / double cylinder |
| Lube oil sump capacity | 3.5ltrs. |
| Cooling system | Water cooled |
| Control panel | Provided |
| Battery | Exide |
| Acoustic enclosure (canopy) | yes |
| Weight | 1.8-2ton |
| Size (Gasifier) | L10 x W7 x H7(feet) |

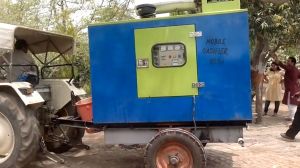

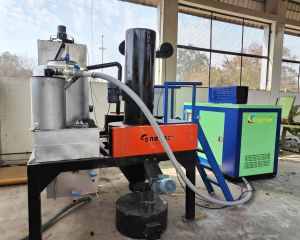

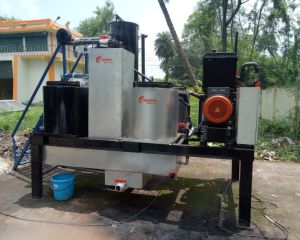

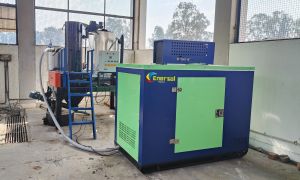

Looking for "5KVA Biomass Gasifier" ?
